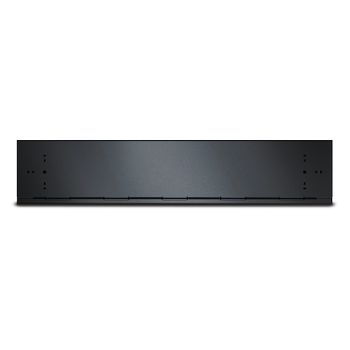

APC SERVICE BYPASS PANEL 230V 16A BBM IEC C20

Varenummer:

SBP3000RMI

EAN:

0731304266747

Type PDU

APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19

APC Maintenance Bypass Panels , Input: 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet ( 2.5 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19,IEC Jumpers

Output

Nominal Output Voltage: 230V

Maximum Total Current Draw per Phase: 16A

Output Connections: 6) IEC 320 C13 (1) IEC 320 C19 (1) IEC Jumpers

Always on Outlets: 7

Overload Protection: Yes

Cord Length: 1 meters

Input

Nominal Input Voltage: 230V

Input Frequency: 50/60 Hz

Input Connections: IEC-320 C20

Cord Length: 2.5 meters

Number of Power Cords: 1

Acceptable Input Voltage: 220-240 VAC

Maximum Line Current per phase: 16A

Maximum Input Current per phase: 16A

Load Capacity: 3000 VA

Load Power Factor Range: 0 to 1

Physical

Net Weight: 2.09 KG

Maximum Height: 89.00 mm

Maximum Width: 432.00 mm

Maximum Depth: 76.00 mm

Shipping Weight: 3.91 KG

Shipping Height: 151.00 mm

Shipping Width: 463.00 mm

Shipping Depth: 295.00 mm

Color: Black

Units per Pallet: 56.00

Environmental

Operating Environment: 0 - 40 °C

Operating Relative Humidity: 0 - 95%

Operating Elevation: 0-4500 meters

Storage Temperature: -15 - 45 °C

Storage Relative Humidity: 0 - 95%

Storage Elevation: 0-15000 meters

Conformance

Regulatory Approvals: VDE

Standard Warranty: 2 years repair or replace

Environmental Compliance: RoHS 7b Exemption,REACH: Contains No SVHCs

Features

Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.

(3) Breaker maintenance bypass panel to isolate the UPS from the critical load

Relaterte produkter

Egenskaper
Driftstemperatur (T-T)	0 - 40 °C
Relativ luftfuktighet under drift (H-H)	0 - 95%
Sertifisering	VDE, REACH
Tekniske detaljer
Samsvarssertifikat	RoHS
Vekt og dimensjoner
Bredde	432 mm
Dybde	76 mm
Høyde	89 mm
Vekt	2,09 kg
