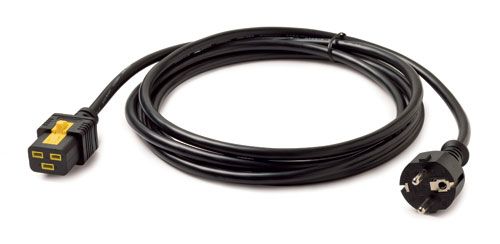

APC Power Cord/Locking C19 to CEE/7 3m

Varenummer:

AP8755

EAN:

0731304279792

Type Strøm
Kontakt 1 Strømforsyning
Kontakt 2 C19 kopling
Farge Sort
Lengde 3.05m

Power Cord, Locking C19 to CEE/7 Schuko, 3.0m

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Output

Nominal Output Voltage 240V
Maximum Total Current Draw per Phase 16A
Output Connections (1) IEC 320 C19
Cord Length 3.05 meters

Input

Input Connections Schuko CEE 7/7P
Cord Length 3 meters
Number of Power Cords 1
Maximum Line Current per phase 16A
Maximum Input Current per phase 16A

Physical

Net Weight 0.42 KG
Maximum Height 230.00 mm
Maximum Width 230.00 mm
Maximum Depth 45.00 mm
Shipping Weight 0.42 KG
Shipping Height 230.00 mm
Shipping Width 230.00 mm
Shipping Depth 45.00 mm
Color Black
Units per Pallet 600.00

Environmental

Operating Environment 0 - 70 °C
Operating Relative Humidity 20 - 80%
Operating Elevation 0-3000 meters
Storage Temperature -20 - 70 °C
Storage Relative Humidity 20 - 80%
Storage Elevation 0-15000 meters

Conformance

Regulatory Approvals VDE
Standard Warranty 2 years repair or replace
Environmental Compliance RoHS,REACH: Contains No SVHCs

Relaterte produkter

Egenskaper
Produktfarge	Sort
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hunkjønn
Kabellengde	3,05 m
Energihåndtering
Innput-strøm	16 A
Miljømessige forhold
Driftstemperatur (T-T)	0 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-20 - 70 °C
Relativ luftfuktighet under drift (H-H)	20 - 80%
Lagringsrelativ fuktighet	20 - 80%
Driftshøyde	0 - 3000 m
Høyde når uvirksom	0 - 15000 m
Vekt og dimensjoner
Vekt	420 g
Datainnpakking
Pakkebredde	230 mm
Pakkehøyde	230 mm
Pakkevekt	420 g
Logistikk data
Harmonisert system (HS)-kode	84733080
Totalt karbonavtrykk (kg of CO2e)	132,13
Andre funksjoner
Dimensjoner (B x D x H)	230 x 45 x 230 mm
