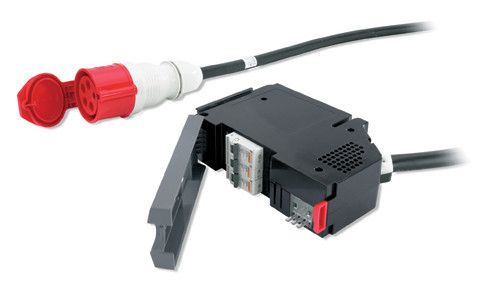

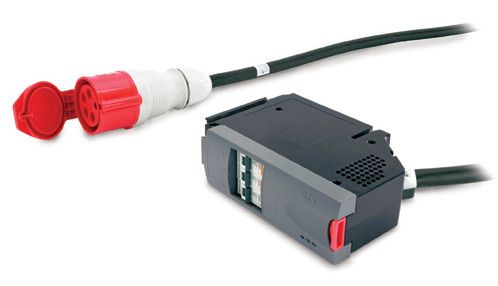

APC IT Power Distribution Module 3 Pole 5 Wire 32A IEC309 260cm

A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.

Full-featured management via a Web browser as well as comprehensive management from a Network Management System.

Provides a number of outlets to bring power to rack equipment at an affordable price.

Minimizes your real estate expenses

PDU equipment can easily be relocated to accommodate a changing data center environment.

Status available to customers both in the data center and remotely

Superior design flexibility enables a wide range of customer requirements to be addressed.

Quickly understand unit and power status with visual indicators.

Safety

Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection

Manageability

Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost

Access status information about the performance of the Power Distribution Module

Convenience

Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required

Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world

Output

Nominal Output Voltage 230V,400V 3PH
Maximum Total Current Draw per Phase 32A
Output Connections (1) IEC 309 32A

Input

Nominal Input Voltage 400V 3PH
Input Frequency 50 Hz
Maximum Line Current per phase 32A

Physical

Net Weight 5.26 lbs. (2.39 kg)
Maximum Height 6.00 inches (152 mm)
Maximum Width 17.00 inches (432 mm)
Maximum Depth 16.00 inches (406 mm)
Shipping Weight 7.26 lbs. (3.30 kg)
Shipping Height 6.00 inches (152 mm)
Shipping Width 17.00 inches (432 mm)
Shipping Depth 16.00 inches (406 mm)

Relaterte produkter

Tilkoblingsevne
Innput-forbindelsestype	IEC 309 32A 3P+N+PE
Output-forbindelser	1 x IEC 309 32A
Egenskaper
Kabellengde	2,6 m
Energihåndtering
Nominell innputspenning	400 V
Nominell outputspenning	400 V
Maksimal innputstrøm per fase	32 A
Maksimal totalt strømforbruk per fase	32 A
Vekt og dimensjoner
Vekt	2,39 kg
Datainnpakking
Pakningsstørrelse (BxDxH)	432 x 406 x 152 mm
Pakkevekt	3,3 kg
Pakkebredde	432 mm
Pakkedybde	406 mm
Pakkehøyde	152 mm

APC PDM 3 Pole 5 Wire 32A IEC309 260cm
